Desert Street Legal LED Kit-Polaris RZR

10% SAVINGS WITH BUNDLE!

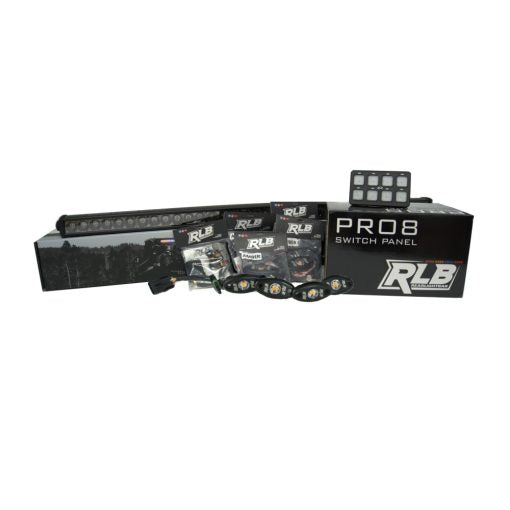

DESERT-STREET LEGAL LED KIT INCLUDES:

• SAN FELIPE CHASE LIGHT- AMBER/WHITE STREET LEGAL
• (1) PRO8 KIT
• (1) PLUG & PLAY PIGTAIL
• (4) AMBER ROCK LIGHTS-AS BLINKERS

The RLB rear light bar includes Amber dust lights and Red running/brake lights, with center reverse/cargo White lights.

100% COMPLETELY PLUG-N-PLAY for easy installation on all UTVs.

The PRO8 8-button electronic programmable switch panel with:

Built-in Blinker Function, with auto-shutoff

CHASE FEATURES:

• RUNNING/BRAKE LED LIGHTS: Blinker capable with any blinker kit (sold separate)
• LED: Dual Function AMBER/WHITE
• PROPRIETARY ROCKER SWITCH: Three position Multi Function Rocker Switch; 1) AMBER OFF,  2) AMBER ON, and 3)  MOMENTARY – Quick press to change AMBER strobe pattern, long press – 2 second hold, turns WHITE utility LED ON/OFF. BESEEN™LED illuminated Rocker Switch fits all factory installed rocker slots, for both UTV and automotive.
• LED STROBE LIGHT COMBINATIONS: 7 pattern combo; 1 SOLID AMBER , and 6 different AMBER strobe patterns

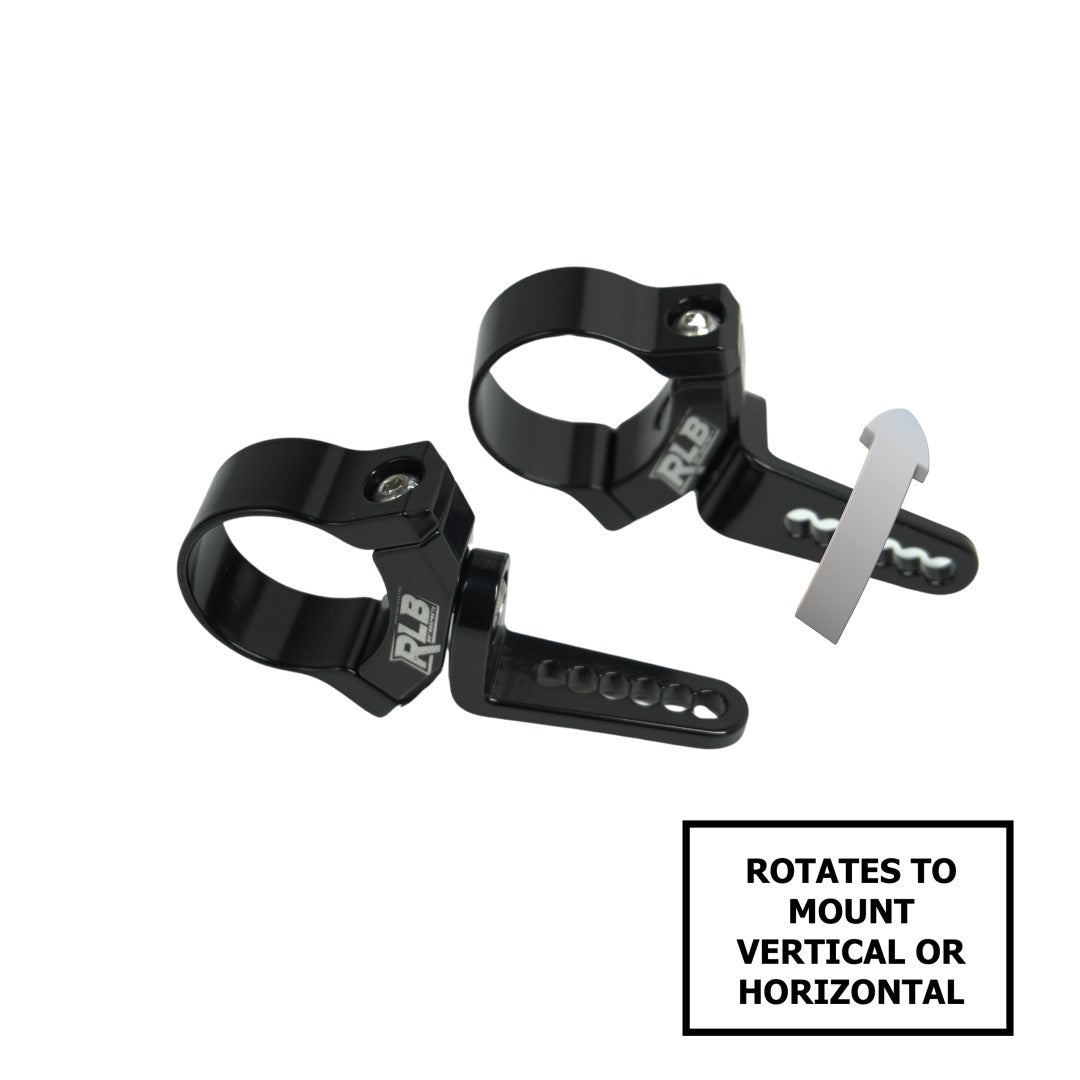

• DUAL VARIABLE TRAC-MOUNTING-SYSTEM: 2 mounting slots run the full-length of light bar; 1 vertical (back side of housing) 1 horizontal (bottom of housing)
• PLUG & PLAY FOR ALL POLARIS RZR MODEL UTVs – NO EXTERNAL RELAY NEEDED
• BUILT-IN OVERVOLTAGE PROTECTION

SPECS:

• LED COLOR: RED: 620-360NM  AMBER: 585-595NM WHITE: 6500-7000K
• LED SOURSE: Epistar 1w LED
• LED LIFE: 50,000 hour life expectancy
• LENS: Hard Impact Resistant Polycarbonate
• HOUSING: Powder coated Aircraft Grade Aluminum
• IP Degree: IP67 Fully Waterproof Housing
• WIRING: Sealed GM Style Deutsch waterproof connectors
• HARDWARE: Stainless steel, mounting bolts included
• Universal for all12V power source systems

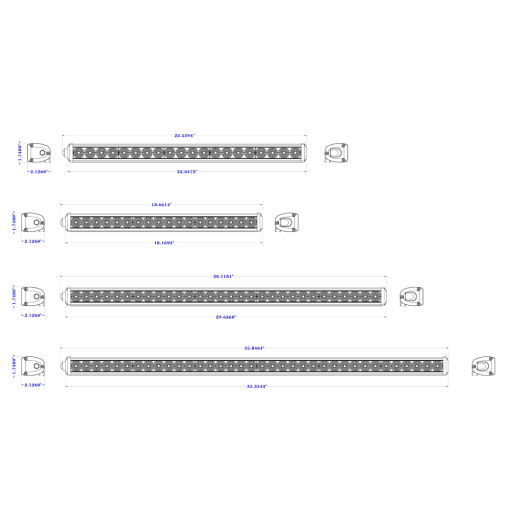

Full Power Consumption: Dimensions:

36”: 36 Watt 36″L x 1.750″H x 2.125″D

30”: 30 Watt 30.125″L x 1.750″H x 2.125″D

22”: 22 Watt 22″L x 1.750″H x 2.125″

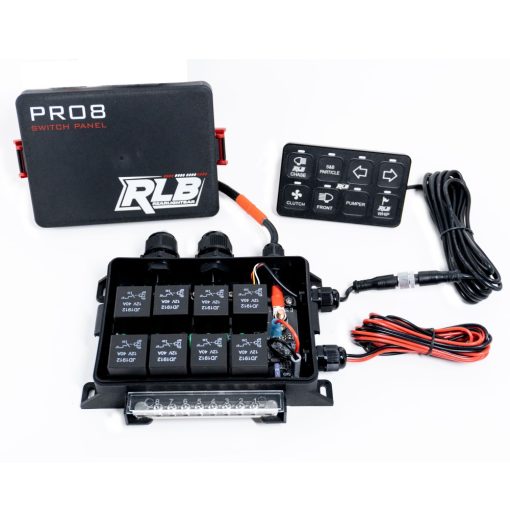

PRO8 Power Module:

• Size: Length 8.27″, Width 6.3″, Height 2.24″
• Temp. Rating: Automotive -40c – 125c
• Waterproof and Dust Rating: Ip66
• Amp Rating: 100a Max
• Each Switch Output: 30a Max
• Low Voltage Cutoff
• Ignition Control

Switch Panel:

• Size: Length 4.57″, Width 2.72″, Height 0.47″
• Housing: Anodized Aluminum
• Switch Membrane and Sticker Legend: Polycarbonate
• Temp. Rating: -30c – 85c
• Waterproof and Dust Rating: 1p66
• Backlight Colors: White, Blue, Green, Red
• Switch Functions: on/off, Flash, Strobe, Momentary, Blinker
• Mounting Options: Flush Mount, Panel Mount, Ram Tube Mount, Ram Surface Mount

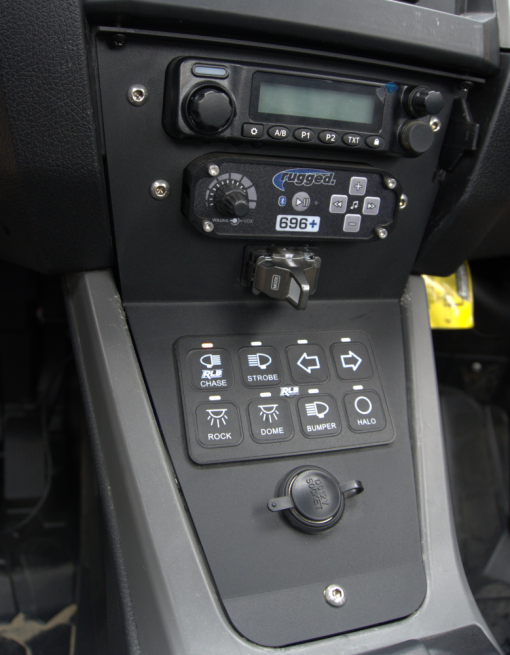

The PRO8 is an 8-button electronic programmable switch panel. Allows for easy installation of any 12V accessories to any off-road vehicle, UTV, Jeep, car, truck, RV, or boat. Waterproof, 100% serviceable, and with four easy mounting options. All-in-one Plug N Play kit.

Switches Can Be Programmed for:

Blinker
On/off or Momentary
Flash or Strobe, With User-selectable Strobe Patterns and One-touch Activation
Memory Function
Master Memory on/off Function
Waterproof Polycarbonate Overlay Faceplate

All PRO8 Systems Include:

Sticker Legend
Eight User-selectable Programmable Switches
Eight 30a Circuits
Waterproof Power Module
100% Serviceable, the Universal Relays and Fuses Are Replaceable; Not Solid State
4 Backlight Color Options; White, Blue, Green, and Red
Two Installation Options: Direct to Battery or Ignition Activated
4 Mounting Options: Flush Mount, Panel Mount, Ram Tube Mount, Ram Surface Mount
Low Voltage Cut-off Protection
Overvoltage Protection
Completely Serviceable Fuse/relay Power Module

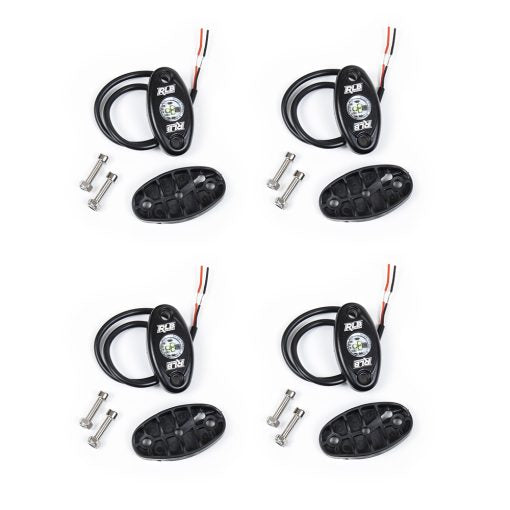

Rock Lights:

LED: CREE LED 50,000 hour life expectancy

LENS: Hard Coated Optic Poly-carbonate

HOUSING: Matte Black Die-cast Aluminum, UV-treated

IP DEGREE: IP68 Waterproof Housing

SIZE: Approx 2.8″(72mm)*1.6″(40mm)*0.5″(12mm)

2.5″(64mm) distance between mounting holes

MOUNTING: all hardware included for surface or tube mount

BEAM: 120-degree angle, flood

VOLTAGE: DC 9-32V

POWER: (3) 3 Watt LED = 9 Watt total

WEIGHT: 300 grams

OPERATING TEMPS: -20~50 degree Celsius
