High Performance Gen3 Rooftop Mount

Vehicle rooftop mount with integrated quick release latch.

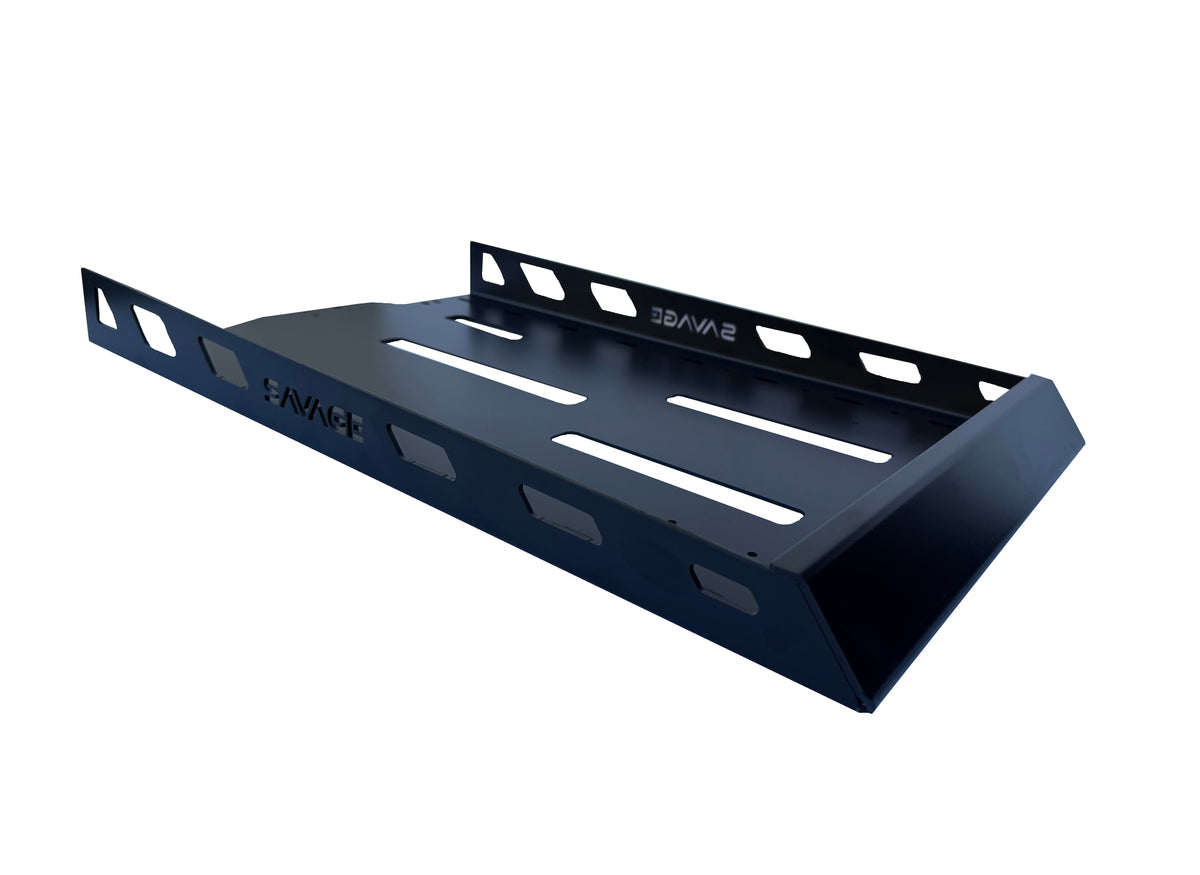

CONSTRUCTION AND AIR COOLED DESIGN

Made of powder coated CNC cut aluminum. The mount offers impact protection to the front and side of the dish while still allowing for air to flow alongside and underneath the dish. This design helps protect the system while keeping the dish cool in warmer environments.

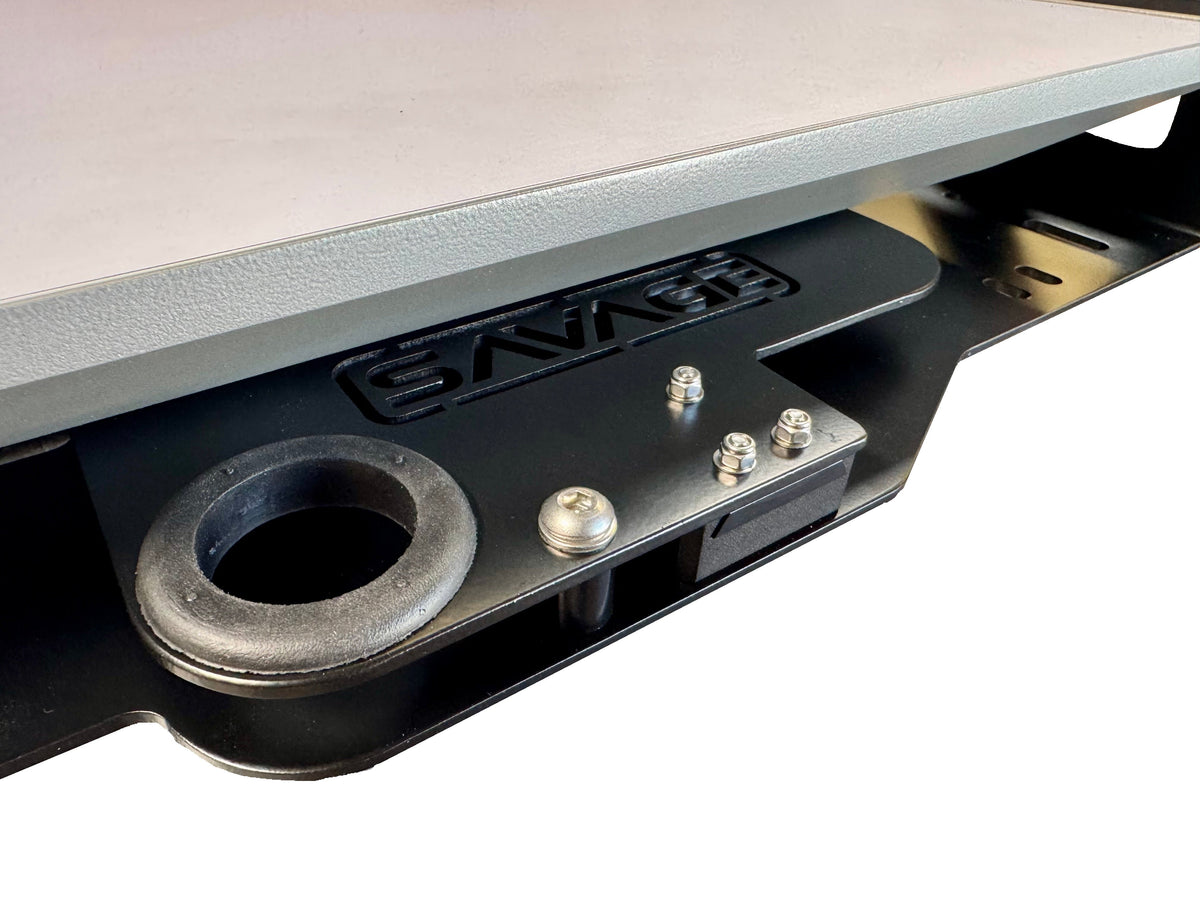

QUICK RELEASE FEATURE

The dish can easily be removed with a single push of a button. Each mount is also designed with a locking security feature to ensure to protect against theft. (Included)

MOUNTING

Multiple mounting options include: Direct bolt to a flat surface. (Roof rack, lumber rack etc...) Magnet mounting to steel body vehicle. (6 total magnets)

Mounting hardware Included - Stainless Steel 1/4-20 hardware is included. M8 and T-lock hardware will also work with this mount for mounting on commonly manufactured roof racks.

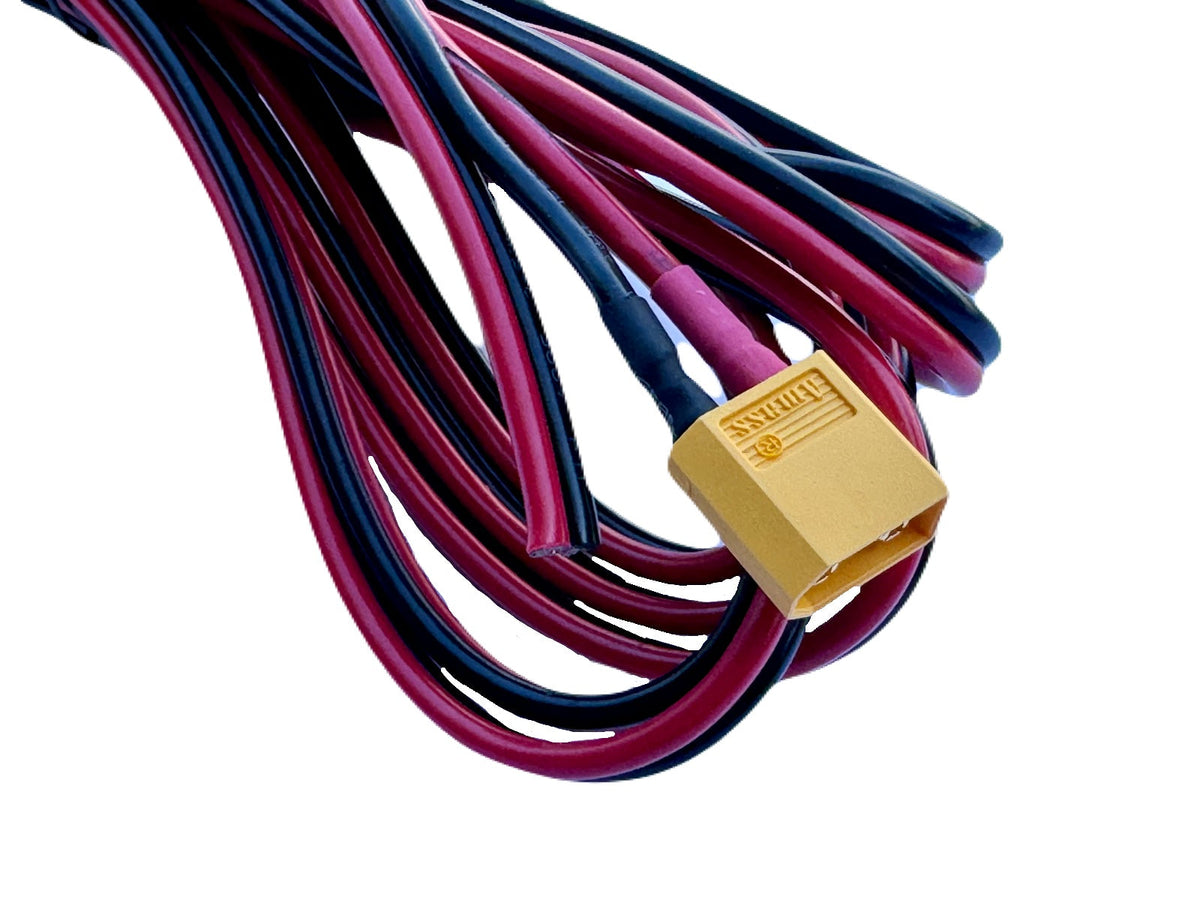

DC POWER CORD - The Starlink HP Gen3 system comes with the ability to power the unit from DC power. However, you will need a cable to connect to a 12VDC power source such as a vehicle battery.  You can add a DC power cable at checkout. (12awg - 14 ft long)

Mount weight: 5 lbs

Mount exterior dimensions: 16" Wide, 25.5" Long, 2.75" Tall

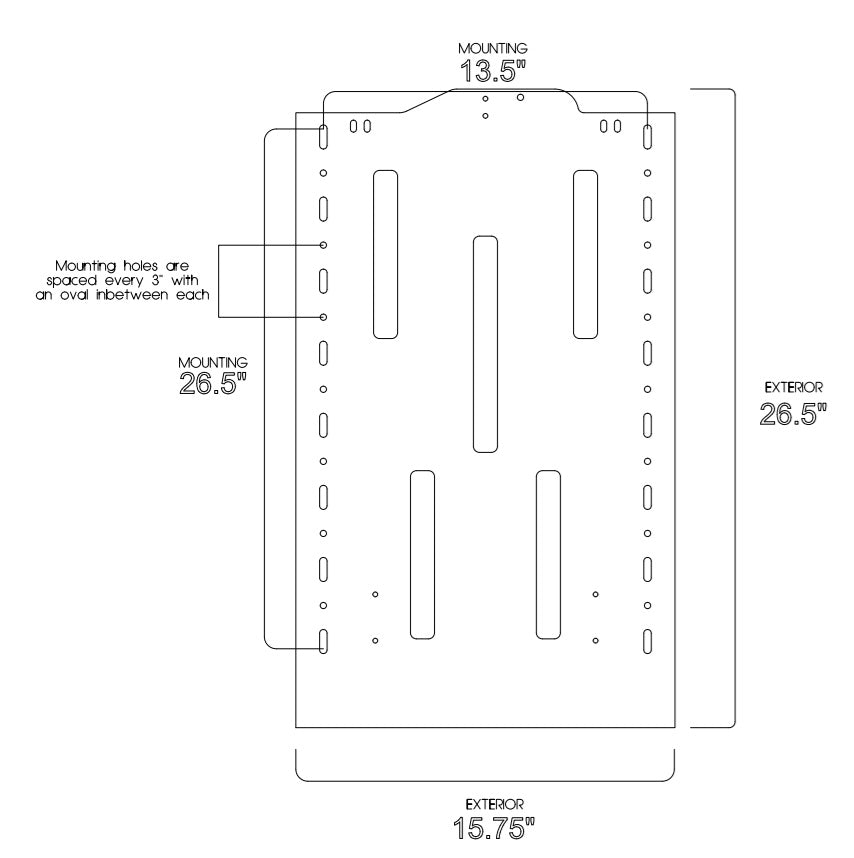

Mounting dimensions: (See image for scaled drawing)
